T5 PRO

Item No.: T5 Pro
Name: Pioneer XR T5 Pro

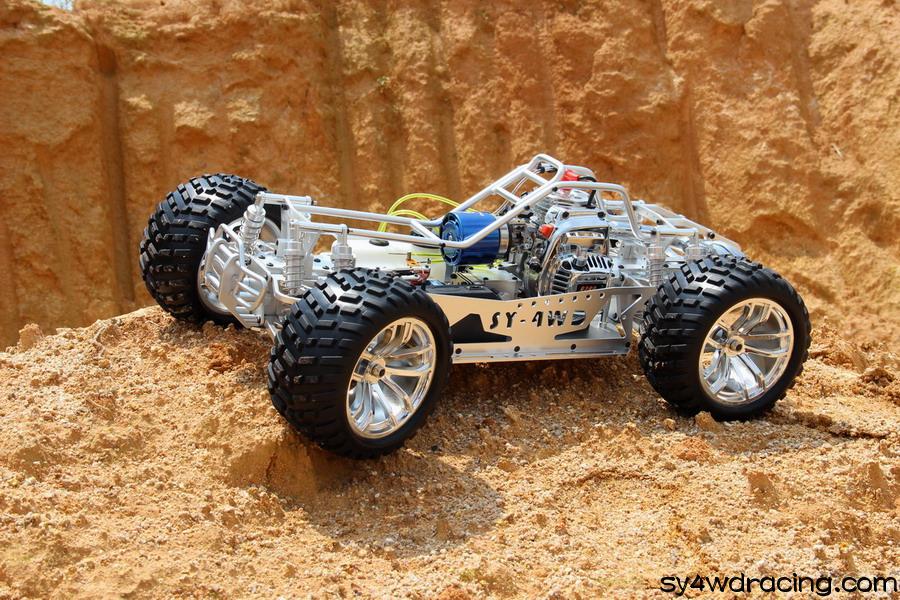

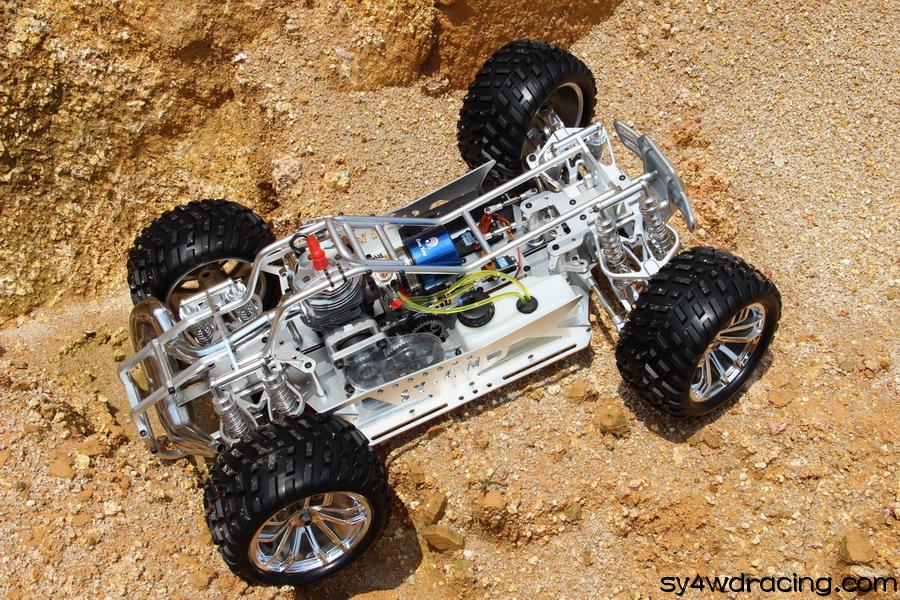

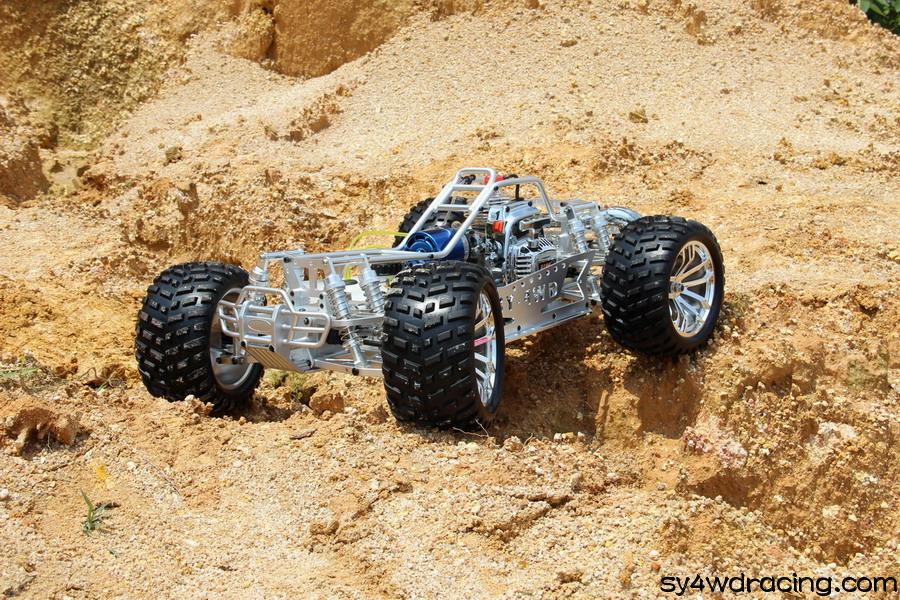

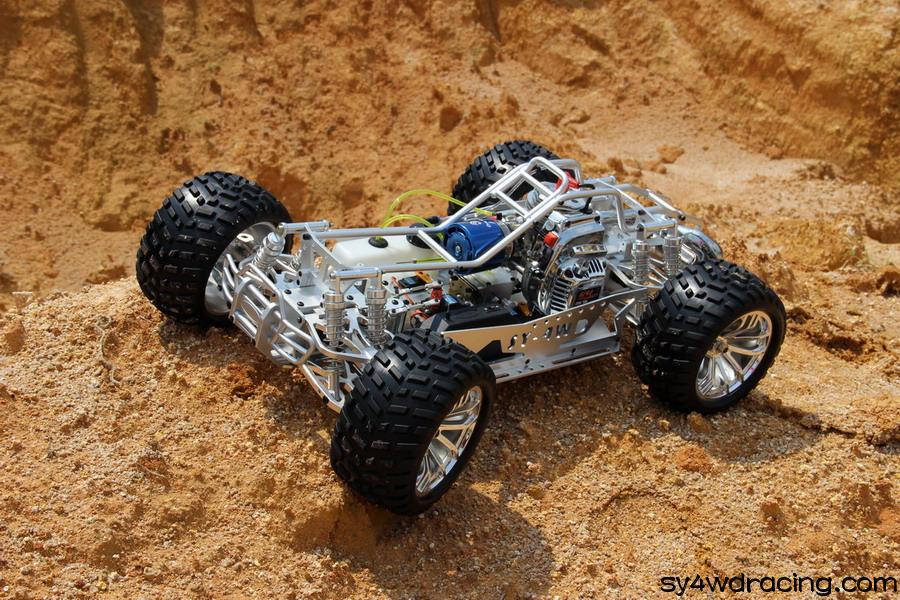

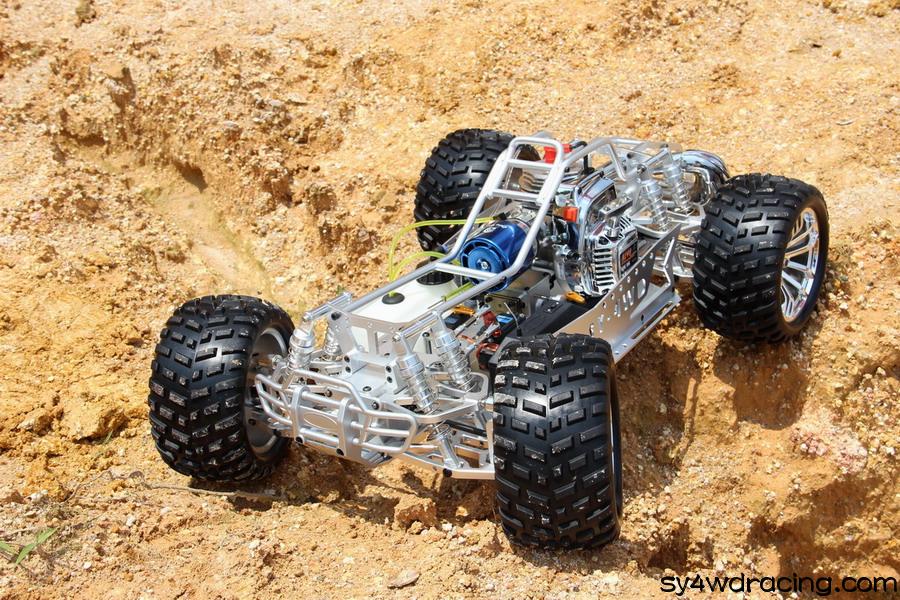

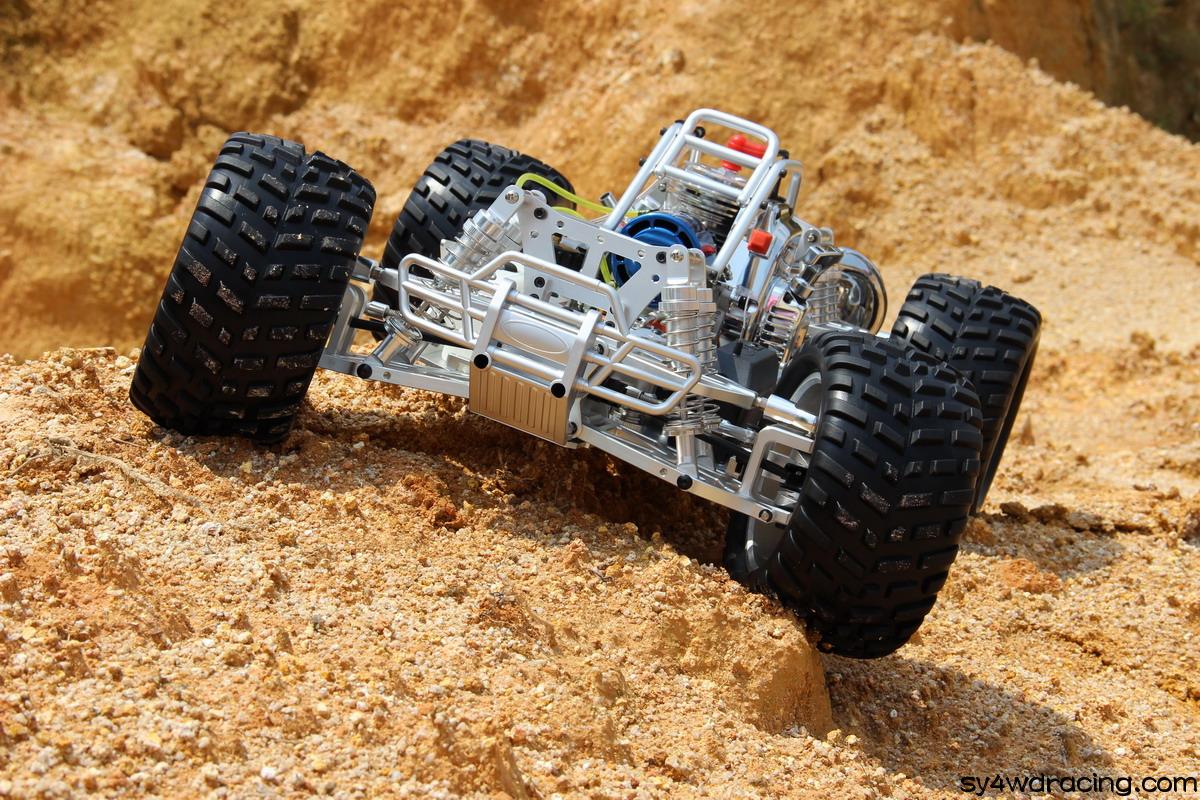

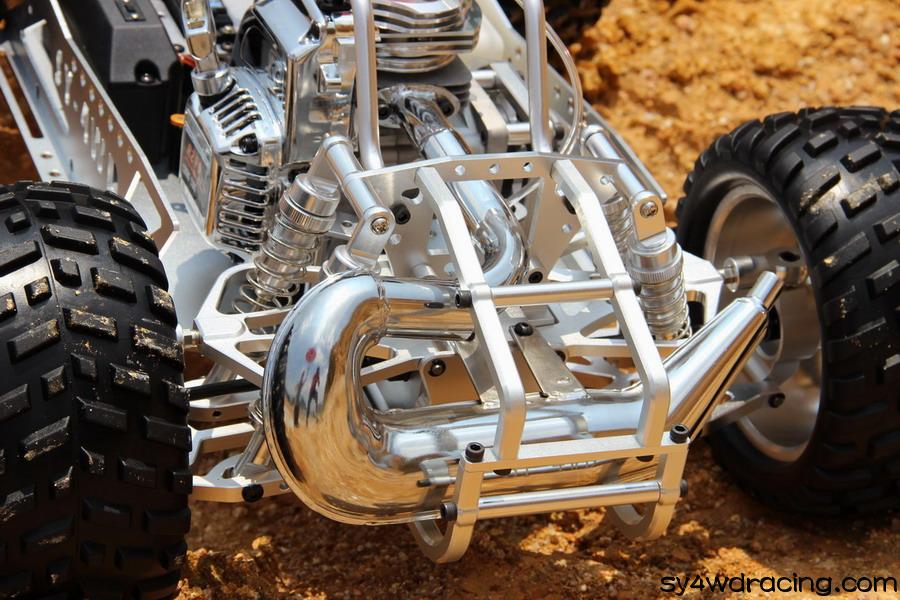

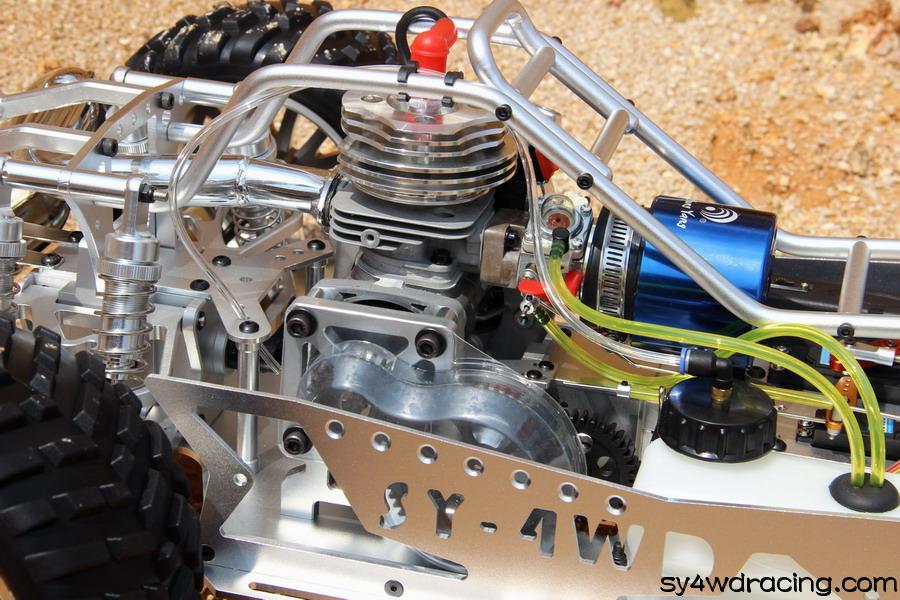

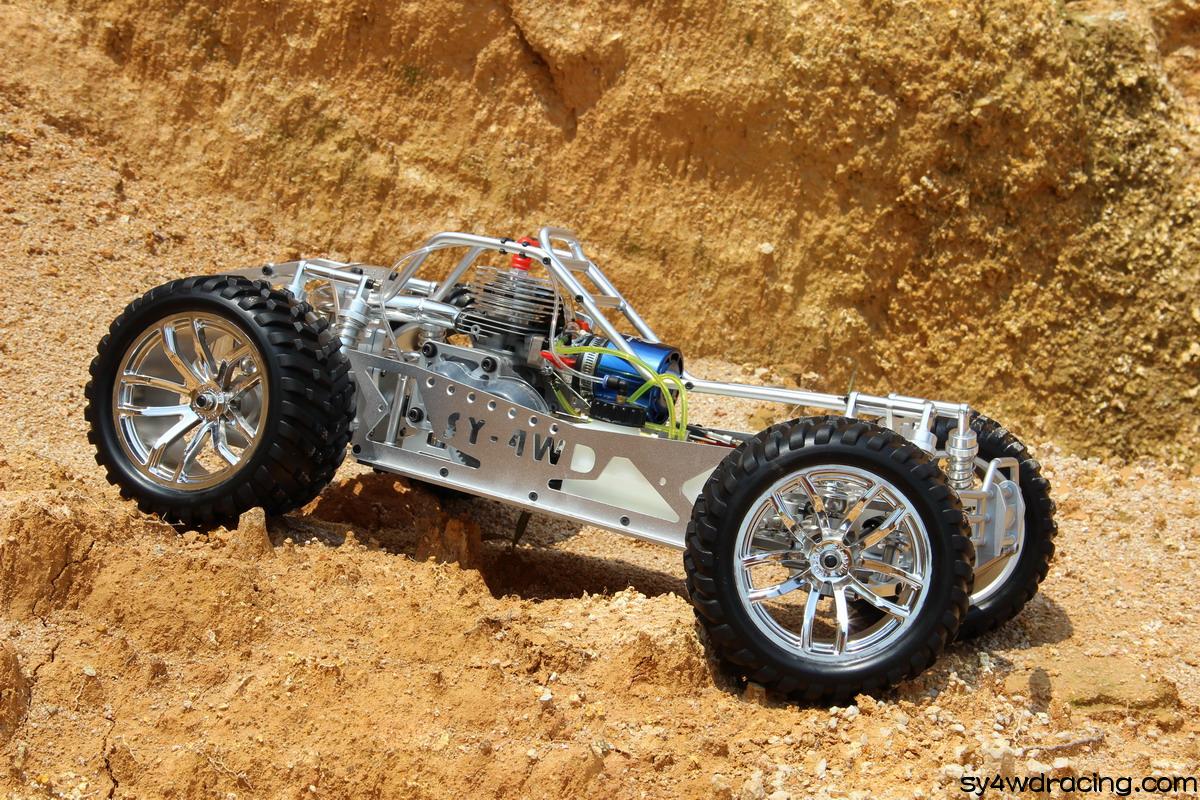

Pioneer XR T5 Pro(The Upgrade version), 1/5 4×4 truck. With CY29CC engine, Feature: The full upgrade version for T5, equipped with upgrade CNC suspension arms, CNC steering arms, CNC“C” seat, CNC rear hub carrier, CNC gear plate, CNC mid gear box cover, CNC diff. gear box cover set, CNC steering set, CNC suspension arm ball end set, CNC ball end set of tie rod, CNC steering ball end set, CNC small gear plate, CNC servo arms, upgrade muffler with CNC rear guard bar. Feature: full upgrade version for T5
Technical parameters:
Length ——————– – 770 mm
Width ———————– 570 mm
Height ———————–300 mm
Wheelbase ——————520 mm
Tread(front/rear)————460 mm

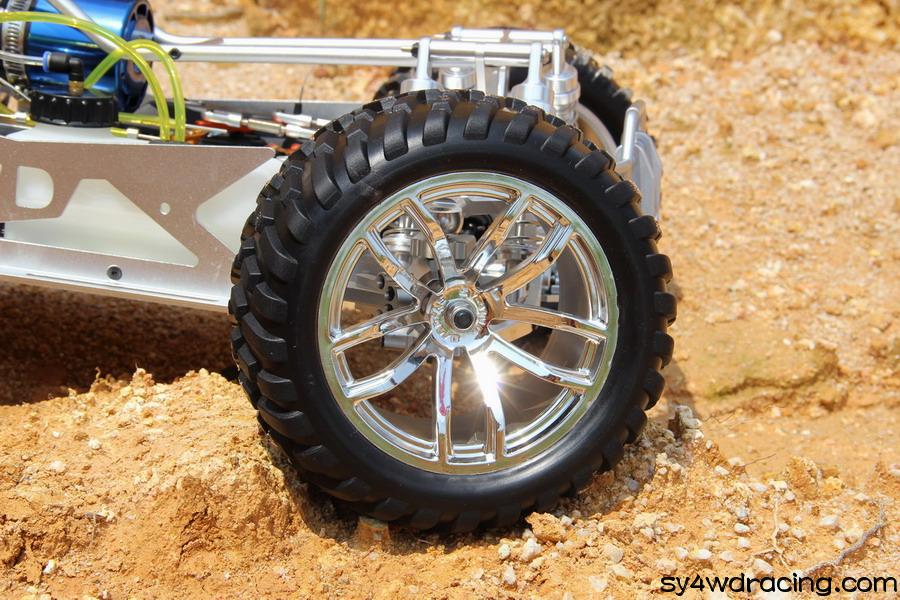

Wheel diameter————-200*w110 mm
Weight————————16.50 kg
Engine————————26cc/29cc/30.5cc
Gear ratio———————9.91: 1
Features:
1) Fully assemble ready to run chassis.
2) Fully powerful CY26cc, optional CY27cc/29cc/CN26cc/ engine equipped with slide carburetor pull-starter.
3) Equipped with muffler accelerator and new air filter.
4) 4WD system with shaft drive.
5) Differential with the built-in rear bevel gear.
6) Adjustable width of double fork suspension system.
7) 8 Strong oil-filled shock absorbers

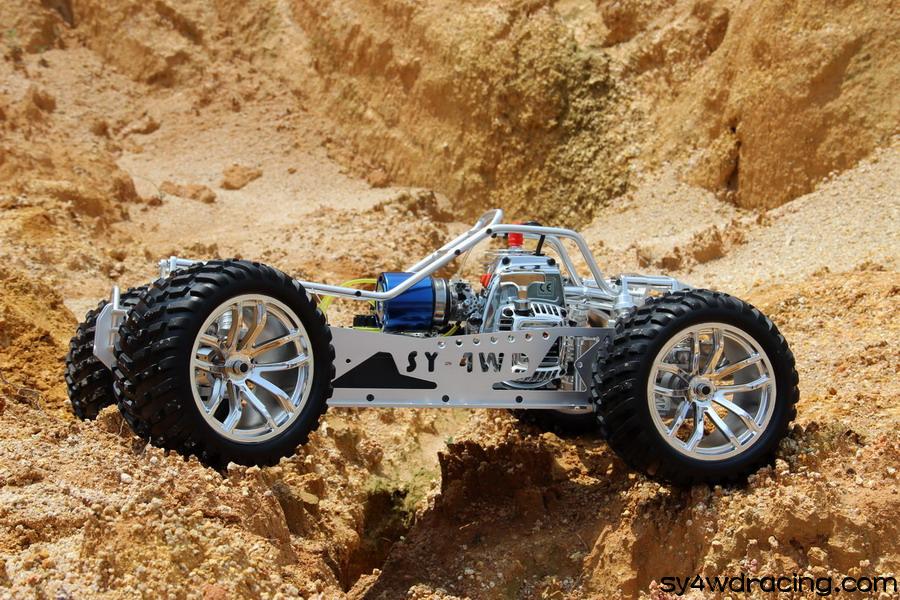

8) Stiff and sturdy 4.0mm 6061-t6 aluminum chassis and side plate.
9) Standard disc break system and optional hydraulic brake system
10) With sensitive Reverse System. Reverse Mid Box – Patent number 201020554772.7
11) Full Steel Differential gears
12) Strong aluminum shed
13) Super sensitive steering system.
14) Super strong front and rear bumper
15) Aluminum servo plate
16) Super 6.0 aluminum front and rear upper mounting plate
17) 620CC fuel tank
18) Max speed: 70km/H
19) 2.4G LCD 3-ch radio system
20) 30kg/cm Steering Servo, 15kg/cm full metal throttle Servo and 6kg/cm Servo for Reverse System.

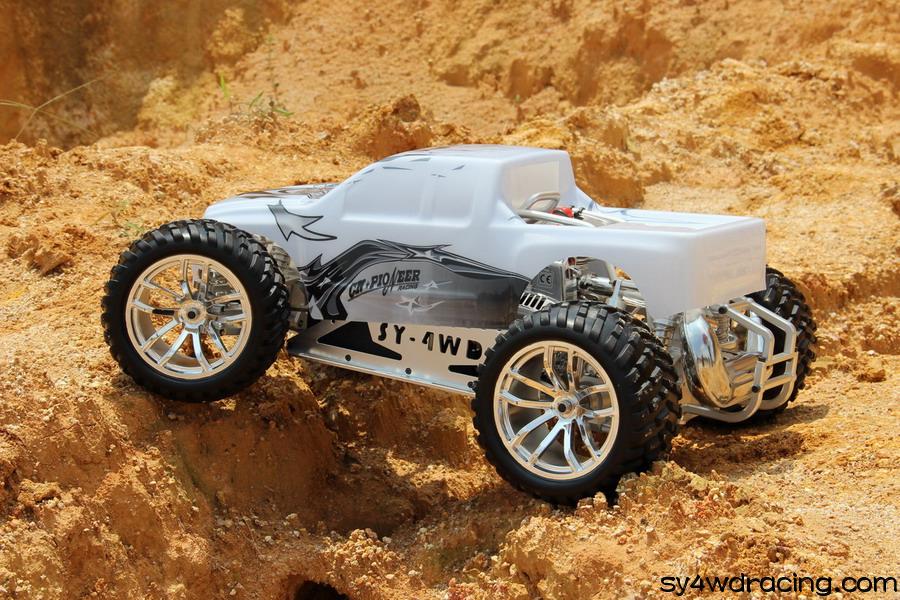

The upgrade version for Pioneer XR T5, designed and manufactured by China Pioneer Racing. It is the first 1/5 4WD gasoline truck in the world as a patented product. Compared to other 1/5 gas cars, it has the most unique function—-reverse system. So this truck may bring you more fun during your operation.
