Item No.: T6
Name: Pioneer XR T6

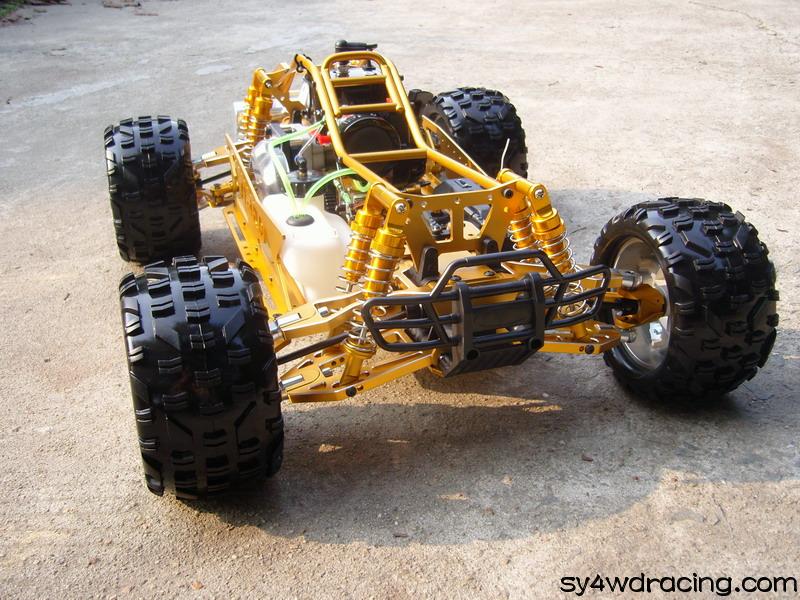

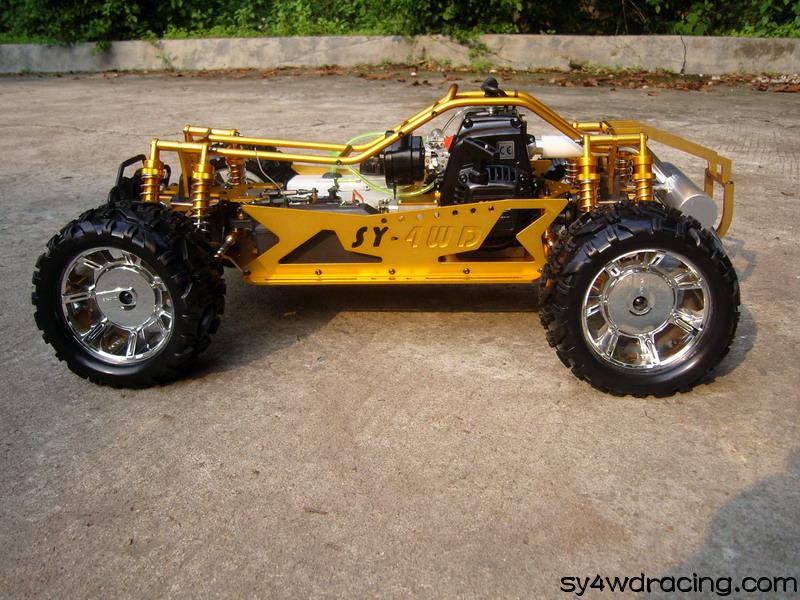

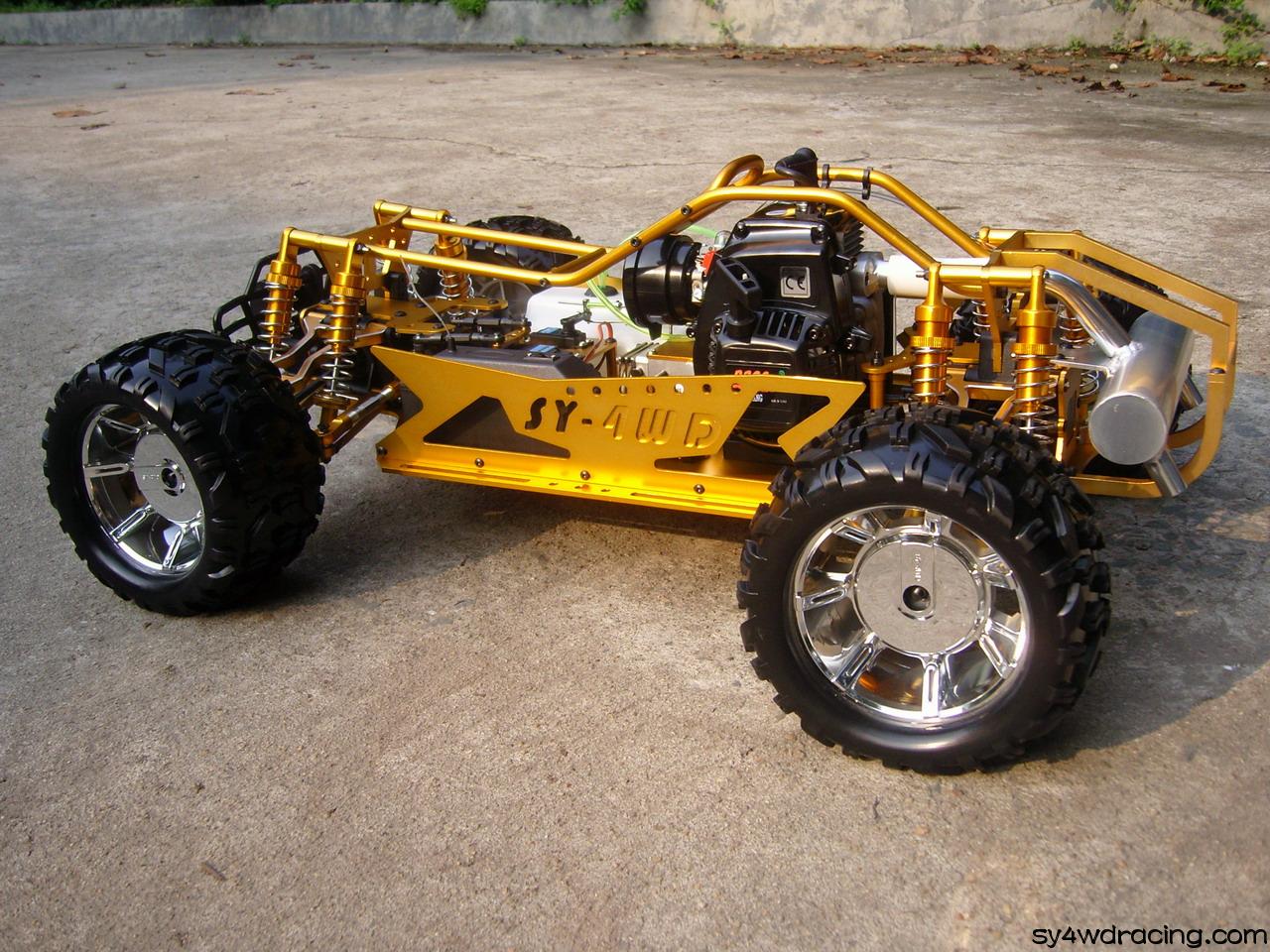

Brief Introduction: Pioneer XR T6 (The long Upgrade version), 1/5 scale 4×4 truck with reverse. With upgraded CNC suspention arm, steering arms, CNC mid gear box, CNC shock absorber. With upgrade muffler and CNC rear guard bars. the CNC suspension ball end set is optional Feature: Big Upgrade Version
Technical parameters:
Length ——————– – 770 mm
Width ———————– 570 mm
Height ———————–300 mm
Wheelbase ——————520 mm
Tread (front/rear)————460 mm
Wheel diameter————-200*w110 mm
Weight————————16.50 kg
Engine————————29cc
Gear ratio———————9.91: 1
Features:
1) Fully assemble ready to run chassis.

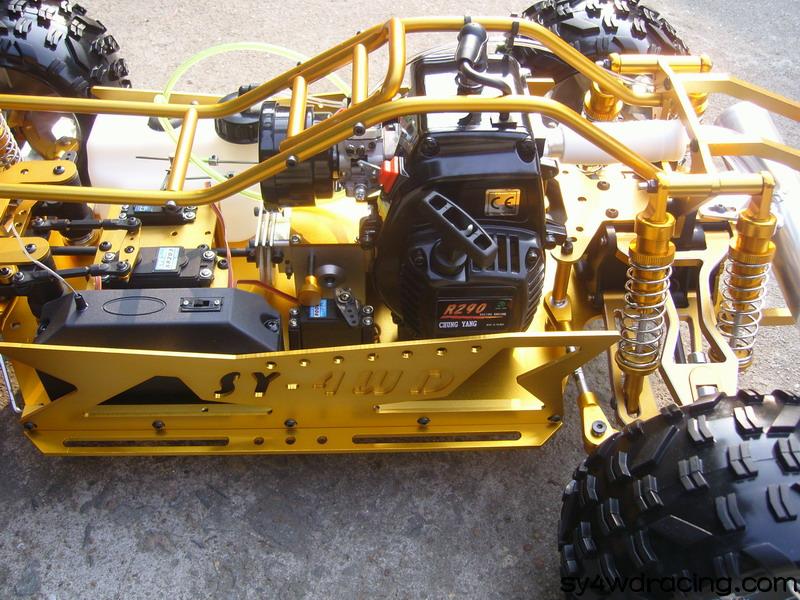

2) Fully powerful CY29cc, optional CY26cc/27cc/CN26cc/ engine equipped with slide carburetor pull-starter.
3) Equipped with muffler accelerator and new air filter.
4) 4WD system with shaft drive.
5) Differential with the built-in rear bevel gear.

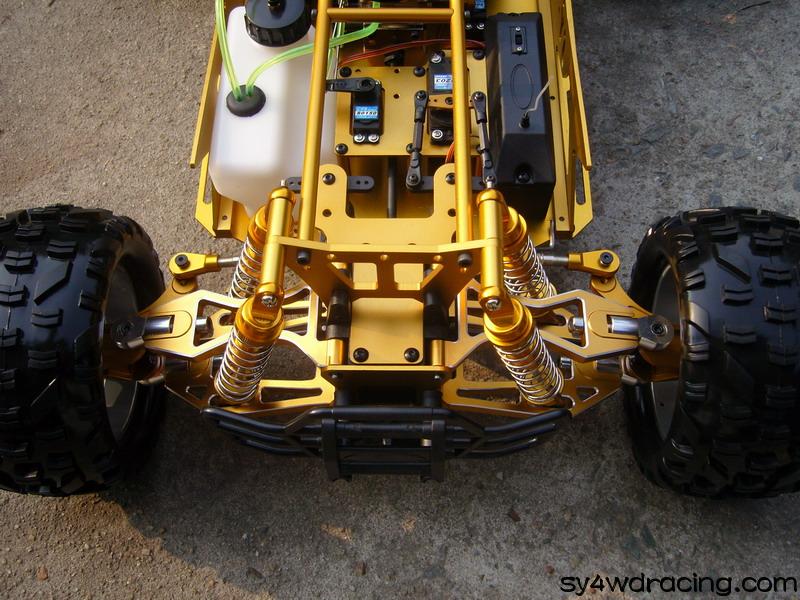

6) Adjustable width of double fork suspension system.
7) 8 Strong oil-filled shock absorbers
8) Stiff and sturdy 4.0mm 6061-t6 aluminum chassis and side plate.
9) Standard disc break system and optional hydraulic brake system
10) With sensitive Reverse System. Reverse Mid Box – Patent number 201020554772.7
11) Full Steel Differential gears
12) Strong aluminum shed
13) Super sensitive full Metal steering system.
14) Super strong front and rear bumper
15) Aluminum servo plate
16) Super 6.0 aluminum front and rear upper mounting plate
17) 620CC fuel tank
18) Max speed: 70km/H
19) 2.4G LCD 3-ch radio system
20) 30kg/cm Steering Servo, 15kg/cm full metal throttle Servo and 6kg/cm Servo for Reverse System.
The upgrade version 1/5 4×4 truck—Pioneer XR T6, designed and manufactured by China Pioneer Racing. It is the first 1/5 4WD gasoline truck in the world as a patented product. Compared to other 1/5 gas cars, it has the most unique function—-reverse system. So this truck may bring you more fun during your operation.

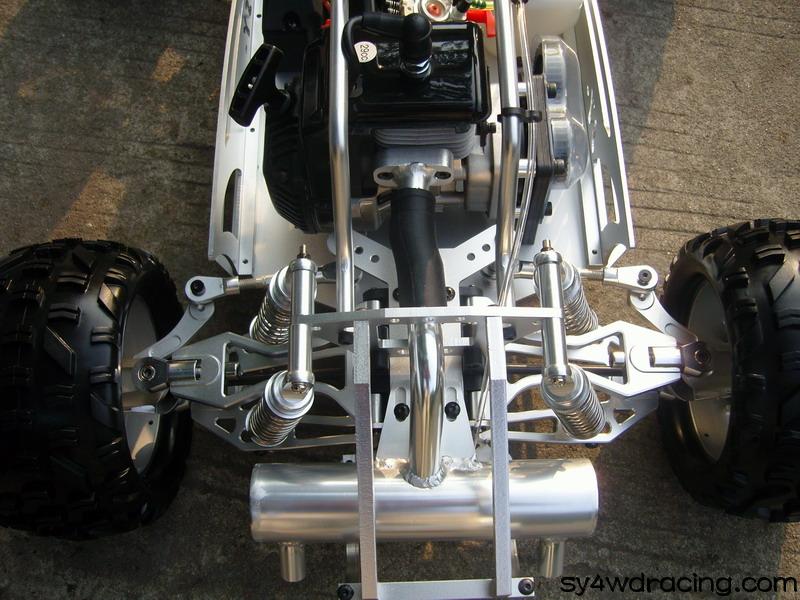

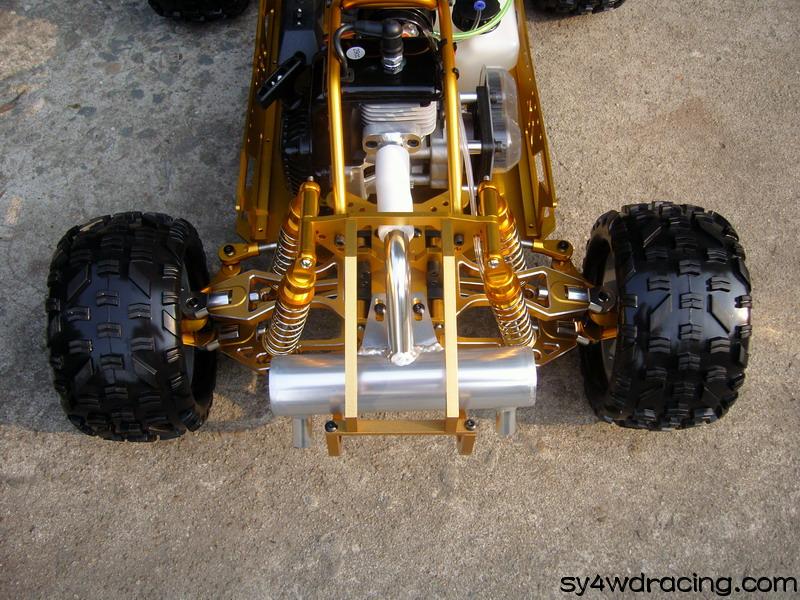

The truck is equipped with equipped with the super strong CNC suspension arms, steering arms, reverse mid box cover and CVD shafts. CNC rear Roll Bar for the upgrade muffler, you can find you own a super strong vehicle.
